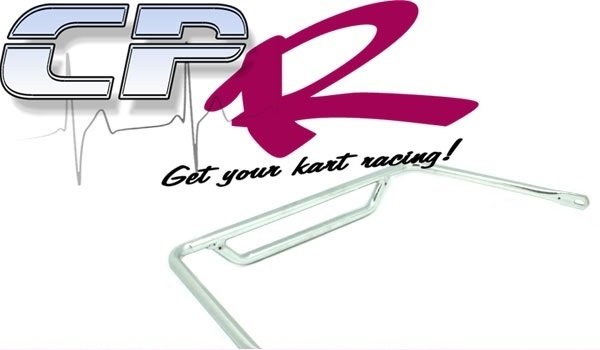

** PLEASE NOTE THIS MODEL IS SILVER**
*Suits newer karts but also upgrades older style karts to the new ‘clamp’ style nosecones.
Replace an older-type bar or a damaged one.
Dimensions (See last picture above for dimensions reference):
A – Width of bar: approx 570mm from mounting point on chassis to mounting point on chassis
B – Additoinal width per side from front corner of top bar: approx 75mm
C – Length of side arm of top bar: approx 270mm
D – Distance from bottom of lower bar to top of top bar: approx 60mm
E -Width of front of bar (upper bar): approx 440mm
F- width of front ‘nosecone clamping’ bar (lower bar): approx 230mm
G – Width between centre of corner of lower mount to centre of corner of top mount: Approx 95mm
H- Length from front of bar (nosecone mount) to centre of side mount holes: Approx 260mm
Suitable for senior sized karts
