Shaft 40mm Axle 8mm Keyway 1050mm Medium
Shaft 40mm Axle 8mm Keyway 1050mm Medium - Image 2
Shaft 40mm Axle 8mm Keyway 1050mm Medium - Image 3
SKU: AXSC408 Category:

Shaft 40mm Axle 8mm Keyway 1050mm Medium

$139.00

Availability: In stock

Add to wishlist
Log in to check if this item ships free to your address

40mm AXLE Shaft only.

Medium grade.

1050mm Long.

8mm Keyways for 2-stroke and 4-stroke application.

Comes with 4x Keys.

Lookinf for dimensions?  Click the DIMENSIONS tab.

Please note from batch to batch the measurements above may be slightly different.

This quality part is the same item used in our 40mm Complete Axle Kits.

Designed for most brands of go karts.

Looking for dimensions? Find them in the Dimensions tab above — Can’t spot it? Click here

Axle Diameter: 40mm

Axle wall thickness: 4.5mm

Axle Length: 1047mm (~1050mm)

Keyway width: 8mm

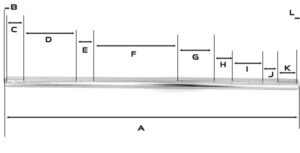

Keyway locations:  from end to end

A = 1047mm (~1050mm)

B = ~10mm

C = ~65mm (Keyway position from end of shaft ~10mm -> ~75mm)
D = ~192mm
E = ~65mm (Keyway position from end of shaft ~267mm -> ~332mm)
F =  ~296mm
G = ~130mm (Keyway position from end of shaft ~628mm -> ~758mm)
H = ~58mm
I =  ~111mm (Keyway position from end of shaft ~816mm -> ~927mm)
J = ~46mm
K = ~65mm ( ~973mm -> ~1038mm)
L = ~10mm
